Description
We have 470pcs in stock ,
please contact emails :
sales@gbloong.com
sales@autotektools.com
Specifications

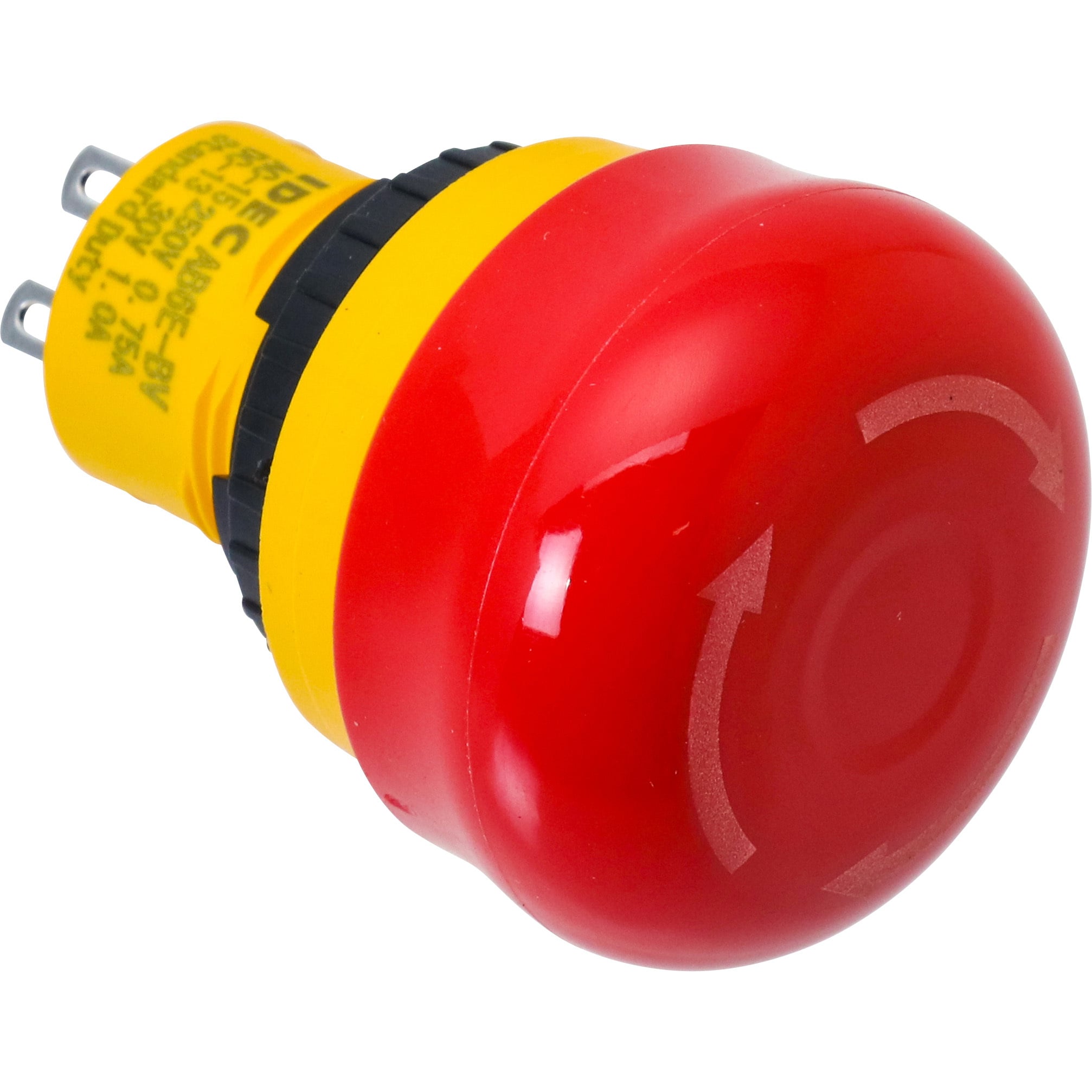

Primary brand
IDEC
Main function
Push-button (Emergency)
Product series / family name
X6 Series
Sub-range name
Emergency stop pushbuttons (unibody)
Functions
Emergency STOP (E-Stop) pushbutton/push-button/PB
Design
Unibody / monolithic
Rated current
5A (Continuous)
2A (30Vdc; DC-12)
1A (30Vdc; DC-13)
5A (125Vac; AC-12)
1.5A (125Vac; AC-15)
0.4A (125Vdc; DC-12)
0.22A (125Vdc; DC-13)
3A (250Vac; AC-12)
0.75A (250Vac; AC-15)
0.2A (250Vdc; DC-12)
0.1A (250Vdc; DC-13)
2A (30Vdc; DC-12)
1A (30Vdc; DC-13)
5A (125Vac; AC-12)
1.5A (125Vac; AC-15)
0.4A (125Vdc; DC-12)
0.22A (125Vdc; DC-13)
3A (250Vac; AC-12)
0.75A (250Vac; AC-15)
0.2A (250Vdc; DC-12)
0.1A (250Vdc; DC-13)
Color
Red (R)
Shape
Round bezel
Round mushroom button
Round mounting hole
Round mushroom button
Round mounting hole
Rated insulation voltage (Ui)
250 V
Diameter
30mm mushroom button
16.2mm mounting hole diameter
16.2mm mounting hole diameter
Connection type
Solder pins connection
Operating mode
2-positions
Pushlock Pull / Turn reset
Pushlock Pull / Turn reset
Normally Open (NO) auxliary contacts
0 NO contacts
Normally Closed (NC) auxiliary contacts
2 NC contacts
Contacts type
2NC contacts
Degree of protection
IP65
Material
Plastic bezel
Ambient air temperature for operation
-25...+60 °C
Ambient air temperature for storage
-45...+80 °C
Electrical durability (with load)
100 000 operations
Mechanical durability (at no load)
100 000 operations
Manufacturer product status
Commercialized
Equivalent to
AB6E3BV02PRM
Compliant with standard(s)
UL 508
CSA C22.2 No. 14
EN 60947-5-1
GB14048.5
CSA C22.2 No. 14
EN 60947-5-1
GB14048.5
Marking
white arrows
