1. Imported orbit materials/ good toughness/ and smooth/ not block screw/ durable.
2. Patent design vibrator/ vibrator always vibration/ never stop.
3. Guide Tsui fluctuation adjusted by screw/ convenient and accurate/ adjust distance can be accurate to 0.01 mm.

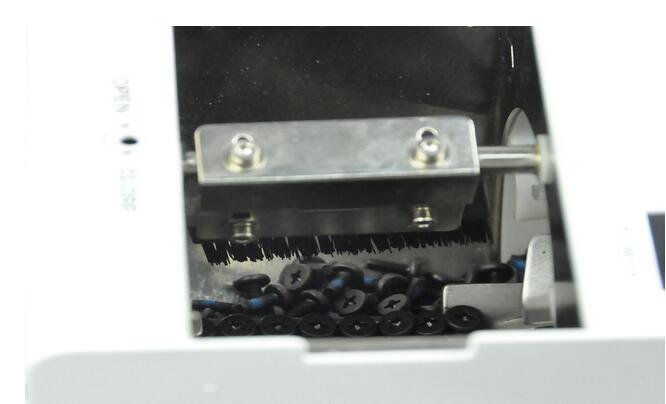

4. Brush fluctuation adjusted by screw/ very convenient.
5. 801 - C type with screw counting function: set A single product Shared screw quantity/ cycling and counting ways to additive or decline. B lock screws total records/ can count a machine total records a period out of the screw.
6. Adjust orbit randomly/ suitable for screw diameter range 1.0 mm to 5.0 mm/ it also suitable for diameter 1.0 mm screw.
Screw Counter Function
DC Power supply
AC220V, DC12V500mA AC ADAPTER
continuous pickup speed
30-100 pcs/min (differ from Screw style)
Applicable Screw Dia
From M1.0 to M5.0 ( Dia from 1.0mm—5.0mm )
M1.0 to M3.0
Applicable Screw Length
M screw & self-tapping

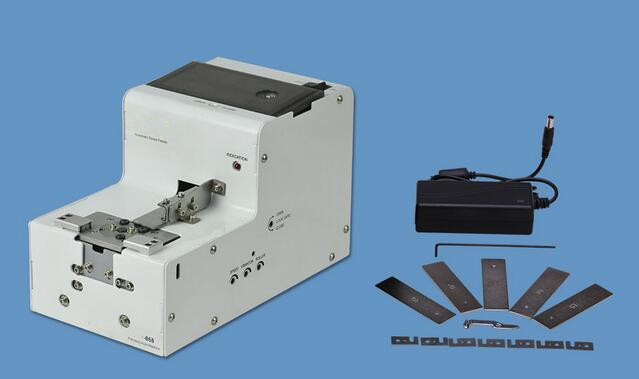

Accessores(in package & box)
Allen Wrench ( L SHAPED 2.0*107 mm) *1pc.
Switching Adaptor AC220V/DC12V *1
Accessary( front) 70*19 *0.8mm ，1.0mm,1.2mm,1.5mm,2.0mm each 1 pcs
Accessary(behind) 20*10*0.2mm*2 pcs & 0.5mm*10 pcs (contain the orbit)
Screw separation blade2.0~5.0mm use *1
1.Orbit (removed) adjustable, a machine can apply for a variety of specifications
2.Screws rotasting feeding with precision can keep the screw from falling into the machine.
3.Pick-up point with no vibration so as to ensure the screw pick-up easy and stable
